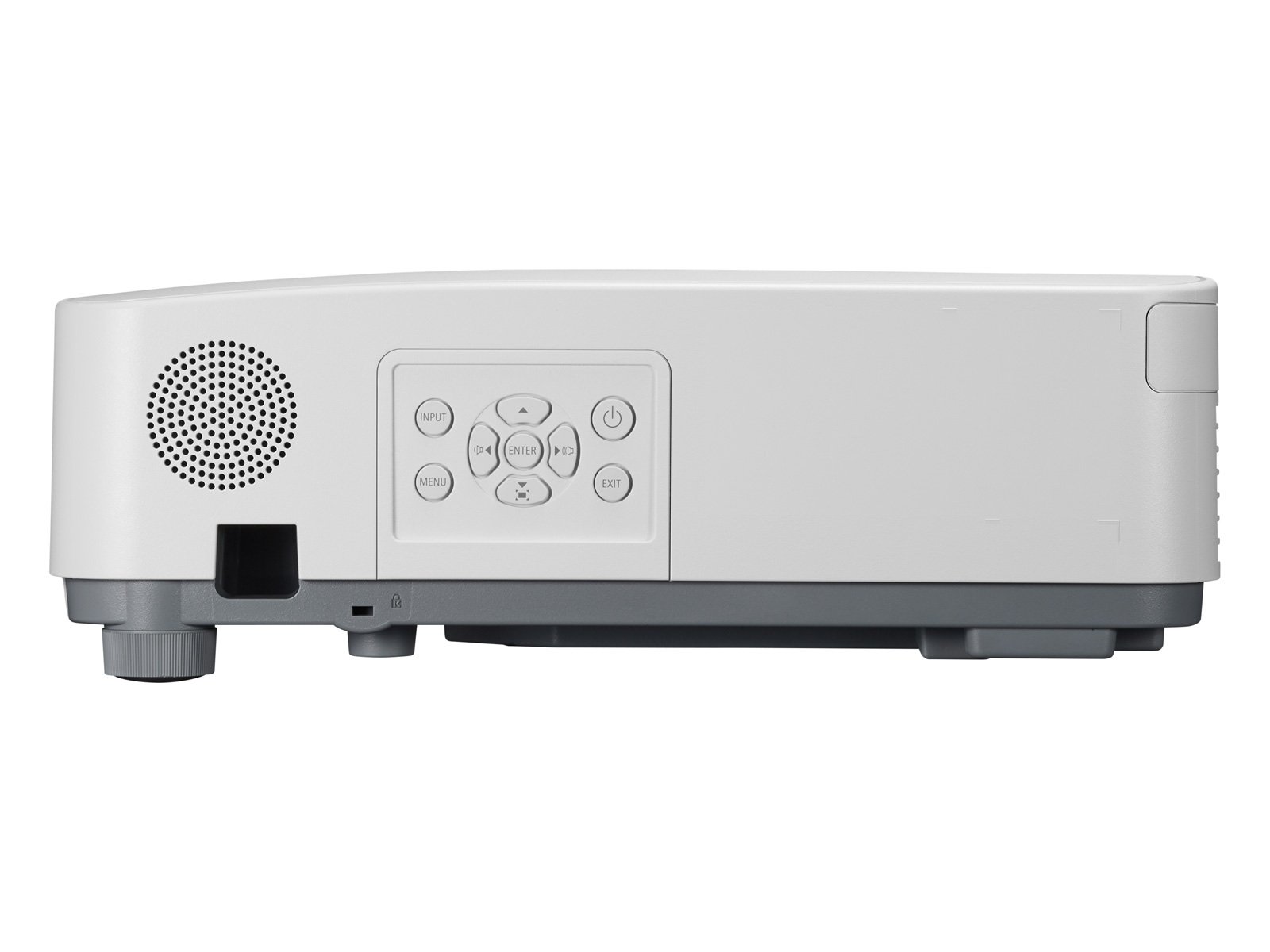

NEC P547UL
| Projection Technology | 3LCD Technology |
| Native Resolution |
1920 x 1200 (WUXGA)
|
| Aspect Ratio | 16:10 |
| Contrast Ratio 1 | 500000:1 |
| Brightness 1 | 5400 ANSI Lumen (approx. 60% in Eco Mode) |
| Lamp | Laser Light Source |
| Light Source Life [hrs] | 20000 2 |
| Lens | F= 1.5–2.1, f= 17.2–27.7 mm |
| Lens shift | Up to H:±29, V:+60,-0 |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Projection Factor | 1.23 – 2 : 1 |
| Projection Distance [m] | 0.8 – 12.9 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 762 / 300″; Minimum: 76.2 / 30″ |
| Zoom | Manual; x1.6 |
| Focus Adjustment | Manual |
| Supported Resolutions |
1920×1200 (Maximum resolution of analog input);3840 x 2160 (Maximum resolution of digital input);3840×2160 @ 30hz digital
|
CONNECTIVITY
| RGB (analog) | Input: 1 x Mini D-sub 15 pin |
| Digital | Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP |
| Audio | Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
| LAN | 1 x RJ45; Optional WLAN |
| USB | 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply; 1x Type A (W-LAN Dongle) |
| Video Signals | NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL60 |
REMOTE CONTROL
| Remote Control | Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select |
ELECTRICAL
| Power Consumption [W] | 293 (Normal) / 220 (Eco) / 1.6 (Network Stand-by) / 0.3 (Stand-by) |
MECHANICAL
| Dimensions (W x H x D) [mm] | 480 x 122 x 407 (without lens and feet) |
| Weight [kg] | 9.7 |
| Fan Noise [dB (A)] | 22 / 26 (Eco / Normal) |
| Colour Versions | White |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | 5 to 40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | 20 to 80 |
ERGONOMICS
| Safety and Ergonomics | CE; EAC; ErP; RoHS; TUEV Type Approved |
| Speakers [W] | 1 x 20 (mono) |
ADDITIONAL FEATURES
| Special Characteristics | Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with USB Display; MultiPresenter Function; NaViSet Administrator 2; OSD with 30 languages; Plug&Play W-LAN Option; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer |
GREEN FEATURES
| Ecological Materials | Downloadable manuals; ECO packaging |
| Ecological Standards | ErP compliant; RoHs compliant |
WARRANTY
| Projectors | 3 years pan-European service |
| Light Source | 3 years or 10000h (whatever comes first) |
SHIPPING CONTENT
| Shipping Contents | 2x AAA Batteries; IR Remote Control (477E); Lens Cap; Power Cord (1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software |
OPTIONAL ACCESSORIES
| Optional Accessories | Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF); Wireless LAN module (NP05LM2; NP05LM4; NP05LM5) |
