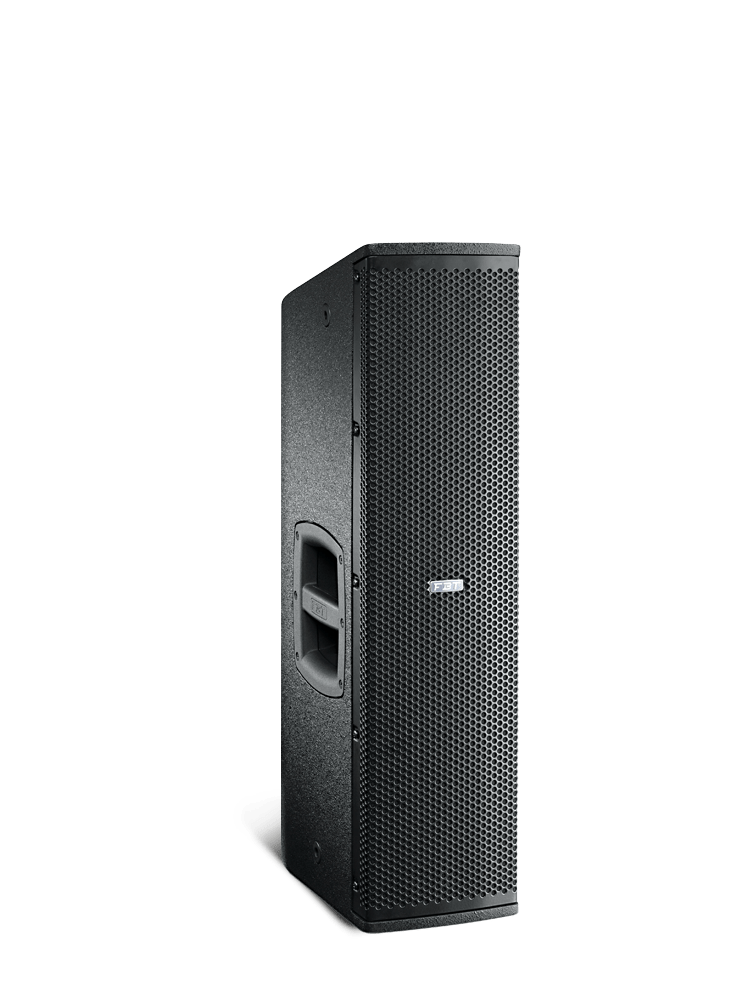

VERTUS CLA 206A

Bi-amplified 2-way line array
2 x 165mm (6.5”) custom woofers with 38mm (1.5”) coil
Neodymium B&C compression HF driver with 36mm (1.4”) throat and 64mm (2.5”) coil
Large format FBT waveguide with 100° H x 25° V dispersion
Frequency response from 65Hz to 20KHz
Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switching mode power supply
DSP processor with 8 equalization presets
Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
Neutrik PowerCON IN and LINK power connectors
Cabinet in 12mm (0.5”) birch plywood with scratch-resistant varnish, two side handles, rubber inserts for protection and anti-slip upper and lower
4 lateral inserts, two upper and two lower points designed to accept quick release pins or M10 screws. New hardware for flying installations, for ground setups and the possibility of coupling two or more CLA 406A / CLA 206A with an angle of 0° – 20° in 5° steps vertically, all with optional quick release pins for touring.
35mm stand socket
Top side inclined 20° to have maximum flexibility of use in combination with other CLA 206A or CLA 406A in order to adapt the vertical dispersion angle of the system to the listening area.
The system can be used both in small point source systems with the CLA 118SA sub and in clusters of two to have a dispersion of 40° (V). It can also be considered a down-fill for CLA 406A systems.
