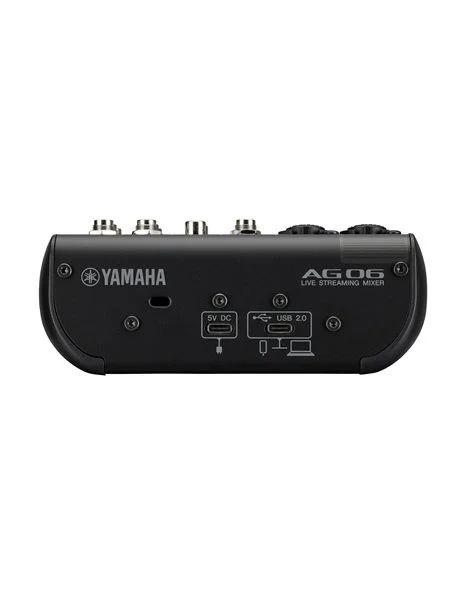

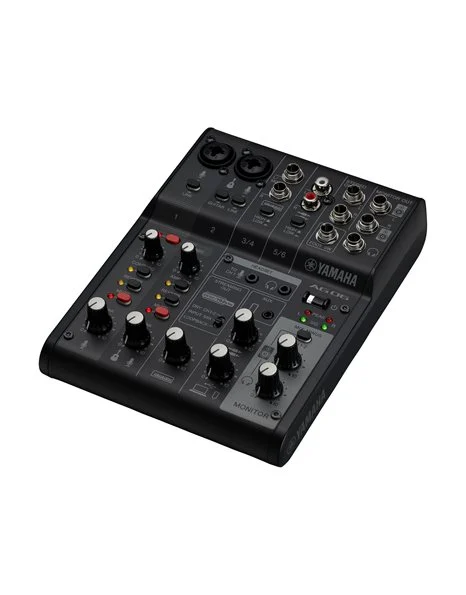

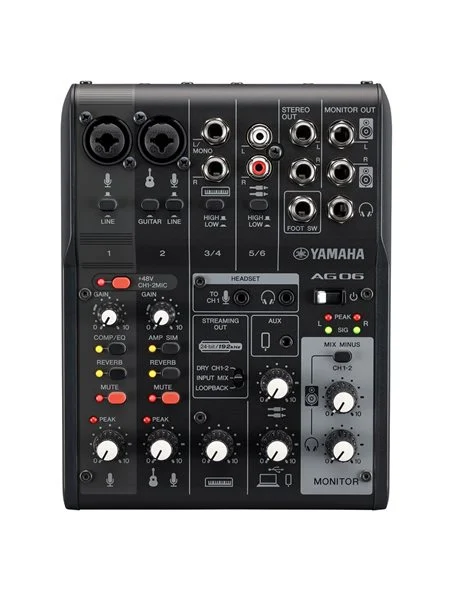

YAMAHA AG-06-MK2-B Audio Interface
Yamaha AG06 Mk2 6-channel Mixer and USB Interface Features:
- USB connectivity means easy use for a variety of streaming needs
- 6-channel mixer enables opportunity for numerous microphone and instrument inputs
- 24-bit/192kHz audio resolution guarantees high-quality output
- Built-in DSP provides onboard FX and control, including compression, EQ, filtering, and reverb
- Precision interfacing tools let you stay in control of what gets heard and how, including the built-in loopback mode that allows you to supplement your inputs with audio from your Mac/PC
- Class compliance mode for iPad connection permits for even more control options, including the Cubasis LE production app, and the AG DSP Controller app
- iOS connectivity incorporates use of apps such as Zoom, Skype, Teams, and FaceTime into your live stream, all from your device
- 2 onboard phantom power options are ideal for use with condenser microphones, if needed
- 1/8-inch/3.5mm 4-pole mini I/O jack supplies more opportunities for audio inclusion, including sound effects, cues, and background music from another device — with a dedicated mix control
Tech Specs
- Type:Analog Mixer with USB
- Channels:6
- Computer Connectivity:USB 2.0
- A/D Resolution:24-bit / 192kHz
- Inputs – Mic Preamps:2 x XLR-1/4″ combo
- Phantom Power:+48V, Channel 1-2
- Inputs – Line:2 x 1/4″ TRS, 1 x Dual RCA Stereo
- Inputs – Other:1 x 1/8″ (Aux)
- Outputs – Main:4 x 1/4″
- Headphones:1 x 1/4″ TRS, 1 x 1/8″
- USB:1 x USB-C
- Other I/O:1 x 1/4″ (footswitch)
- Effects:Loopback function, one-touch Reverb
- Software:Cubase Al, WaveLab Cast, Cubasis LE, Rec’n’Share
- Power Source:USB bus powered (5V DC)
- Height:2.48″
- Width:5.98″
- Depth:7.91″
- Weight:1.98 lbs.
