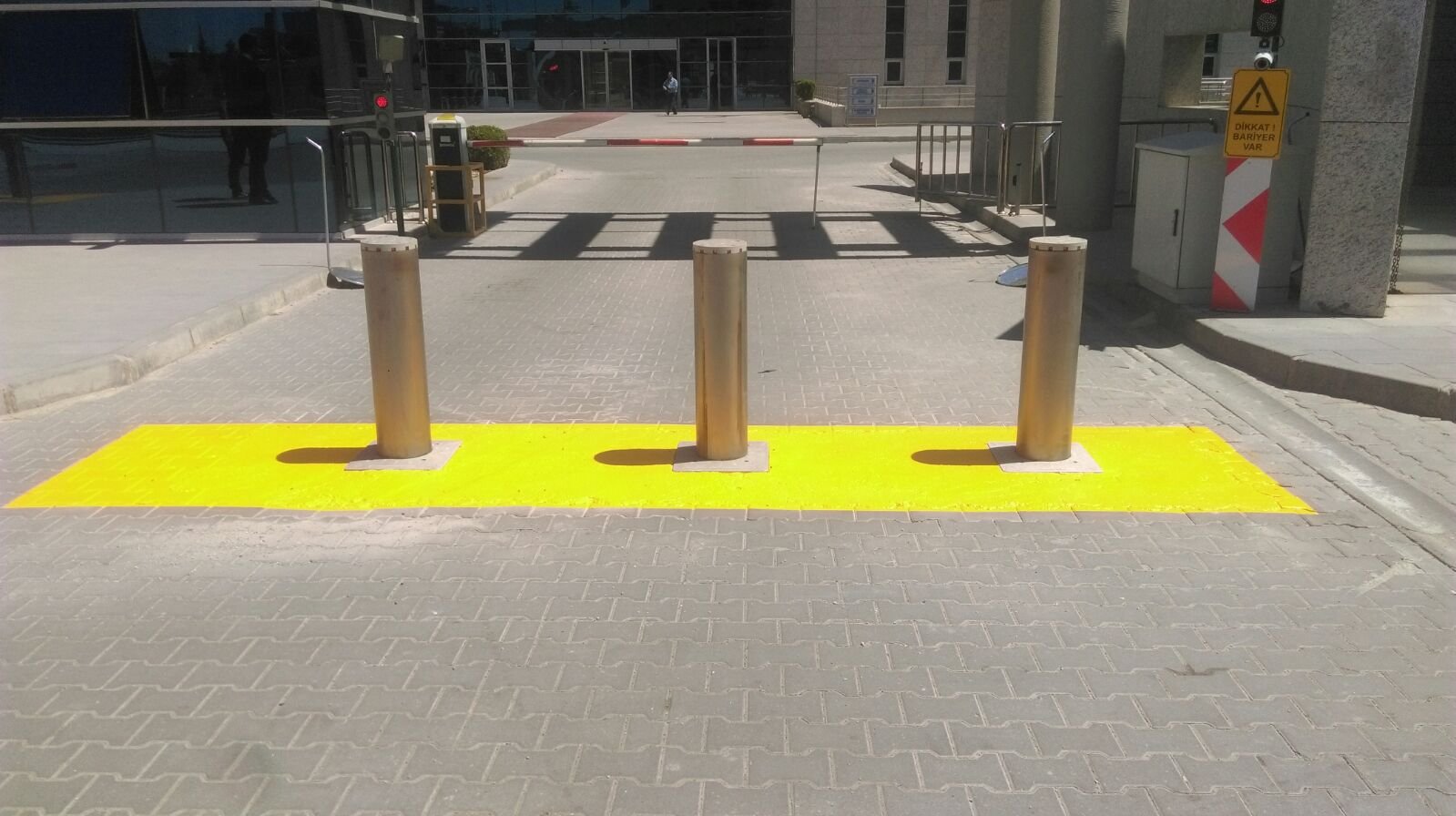

High Security Rising Bollard
| Diameter | Ø 300 mm |
| Length | 1100 mm |
| Wall Thickness | 30 mm |
| Moving Part | Powder Coating |
| Mortise and Tenon Joinery | Hot-dip Galvanized |
| Connection Points | M8 x 30 İmbus Bolt (Stainless) |
| Collision Energy | 1902.66 Kj |
| Penetration | P1 |
| Operating Speed | 7-9 sec. |
| Control Panel | A-GA Board |
| System Security Support | Loop Sensor |
| Movement Mechanism | Hydraulic |
| Min. Operating Pressure | 60 bar /870 psi |
| Max. Operating Pressure | 100 bar /1450 psi |
| Hydraulic Hose | R2 1/2 330 Bar |
| Hydraulic Oil | 32/46/68 |
| Unit Operating Voltage | 220/380 V ( AC) |
| Operating Temperature | -25 °C / +50 °C |
| Manually | Ball Valve |
| Manual Lifting | Hand Pump |
| Can be connected to any kind of Access control system | License Plate Recognition, Card Reader,etc |
| Optional | |
| Power Outage | Accumulator Support |
| Warning Equipment | Flasher / Traffic Lamp |
| E.F.O. Circuit For Emergency Lifting | Yes 2 sec. |
| Control Panel | PLC (Programmable Logic Controller) |
| System Security Support | Safety Photocell |
| Hydraulic System Heating- Cooling | |
| Water Drain Pump | |
| Protection Class | IP67 |
| Product Certificates | CE, PAS68-P1, Turkish Goods Certificate |
| Quality Certificates | ISO (20000-1:2011, 9001:2015,10002:2018, 14001:2015), OHSAS (18001:2007) |
